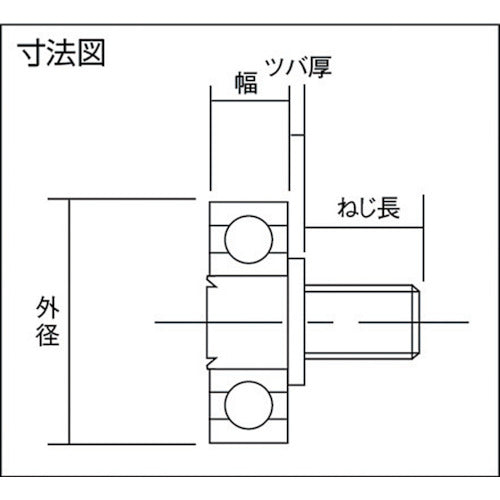

Catalog number: 30ST-6B3.5 Features: ●The JIS bearing is fitted with a crimped mounting screw, so there is no loosening between the screw and the bearing. Applications: ●Various transport parts, machinery, etc. Specifications: ●Bearing: 6200ZZ ●Outer diameter (mm): 30 ●Roller screw dimensions: M8 x 1.25 ●Thread length (mm): 12 ●Width (mm): 9 ●Flange thickness (mm): 3.5 ●Hexagonal hole (mm): 6 ●Estimated load (N): 500 ●Bearing precision grade: JIS B 1514 Grade 0 ●Operating temperature range: -40 to 140°C ●Hexagonal hole bolt type Material/Finish: ●Bearing: Steel ●Bolt: Steel (Surface treatment: Trivalent chromate plating) Note: ●This is an estimated load value and is not a guaranteed value.
