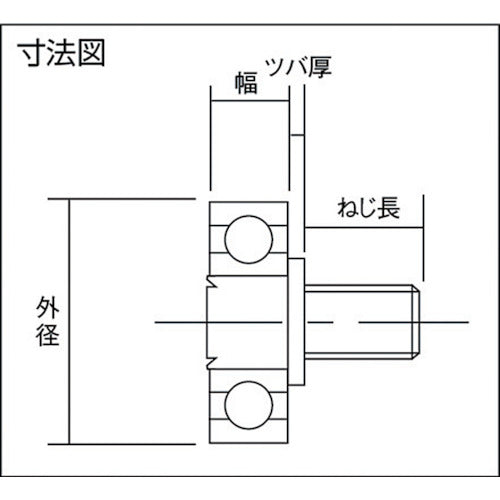

Catalog number: 15ST-B2 Features: ●The JIS bearing has a crimped mounting screw, so there is no loosening between the screw and the bearing. Applications: ●Various transport parts, machinery, etc. Specifications: ●Bearing: 696ZZ ●Outer diameter (mm): 15 ●Roller screw dimensions: M6 x 1.00 ●Screw length (mm): 8 ●Width (mm): 5 ●Flange thickness (mm): 2.0 ●Estimated load (N): 400 ●Bearing precision grade: JIS B 1514 Grade 0 ●Operating temperature range: -40 to 140°C Materials/Finish: ●Bearing: Steel ●Bolt: Steel (Surface treatment: Trivalent chromate plating) Note: ●This is an estimated load value and is not a guaranteed value.
