Eastern Turntable THS70160 1 piece

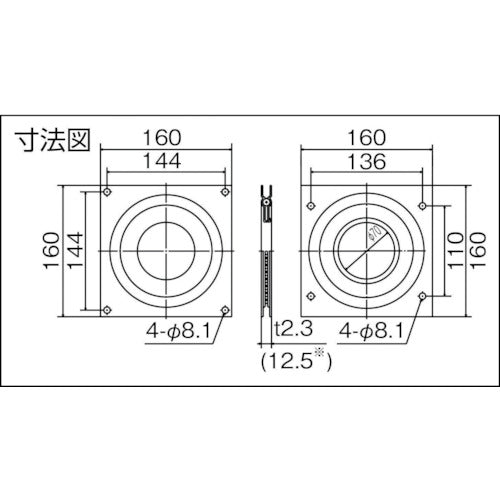

Catalog number: THS70160 Features: ● Quiet and heavy-duty design. ● The top and bottom plates are crimped together so they will not come loose or come off. Applications: ● Turntables, TV rotating tables, etc. Specifications: ● Uniform load (kg): 100 ● Outer diameter (mm): 160 ● Inner diameter (mm): 70 ● Height (mm): 12.5 ● Width (mm): 160 ● Depth (mm): 160 ● Mounting pitch (top): 110 x 136 mm ● Mounting pitch (bottom): 144 x 144 mm ● Mounting hole diameter: 8.1 mm Material/Finish: ● Steel (trivalent chromate plating) Note: ● Since this product is a pressed product, there may be differences in the positive height direction, so the actual dimensions will take precedence.
