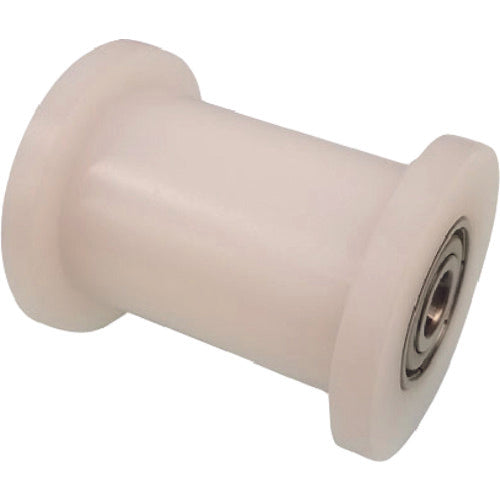

Eastern Plastic Pulley Double Flange EHMW-0830 1 pc

Catalog number: EHMW-0830 Features: ●Excellent impact resistance, abrasion resistance, chemical resistance, and low water absorption compared to polyacetal resin. Applications: ●Pulleys, guide rollers, etc. Specifications: ●Bearing: 608ZZ ●Inner diameter (mm): 8 ●Outer diameter (mm): 30 ●Overall width (mm): 50 ●Estimated load (N): 200 ●Groove bottom diameter (D1): φ30 ●Operating temperature range (℃): -40 to 50 ●Accuracy grade: JIS B 1514 Class 0 ●Flange thickness (mm): 5 ●Groove bottom diameter (mm): φ30 ●Flange diameter (mm): φ40 ●Double-sided flange type Material/Finish: ●Bearing: Steel ●Outer circumference: Ultra-high molecular weight polyethylene Note: ●This is an estimated load value and is not a guaranteed value.
