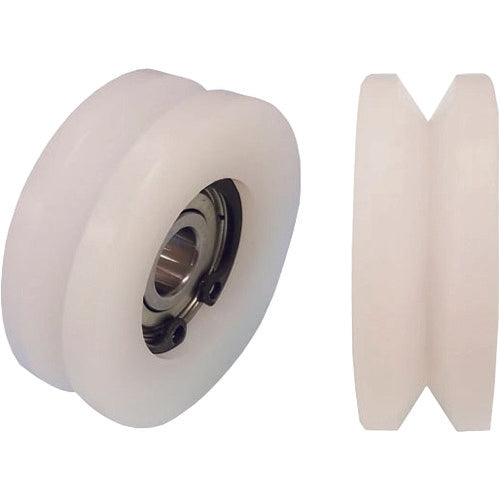

Eastern Resin Pulley V-Groove EVMW-1260 1 pc

Catalog number: EVMW-1260 Features: ●Excellent impact resistance, abrasion resistance, chemical resistance, and low water absorption compared to polyacetal resin. Applications: ●Pulleys, guide rollers, etc. Specifications: ●Bearing: 6201ZZ ●Inner diameter (mm): 12 ●Outer diameter (mm): 60 ●Overall width (mm): 18 ●Estimated load (N): 250 ●Angle M (°): 60 ●Groove bottom diameter (D1): φ50 ●Operating temperature range (℃): -40 to 50 ●Accuracy grade: JIS B 1514 Class 0 ●Groove bottom diameter (mm): φ50 ●Angle (°): 60 ●V-groove type Material/Finish: ●Bearing: Steel ●Outer circumference: Ultra-high molecular weight polyethylene Note: ●This is an estimated load value and is not a guaranteed value.
