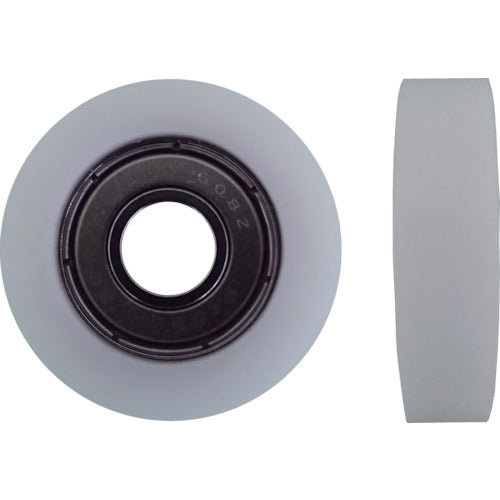

Eastern Resin Bearing E-Type E-1040 1 pc

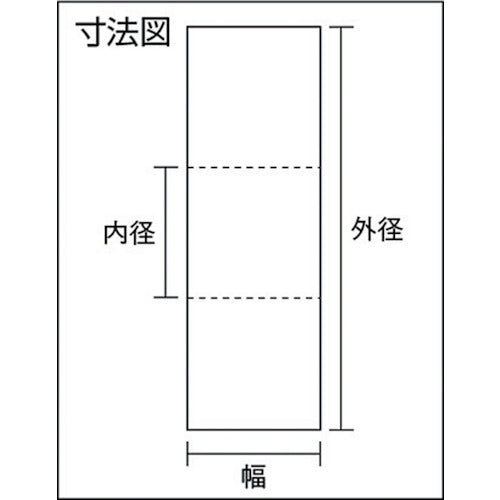

Catalogue number: E-1040 Features: ● Resin molded bearing with built-in precision bearing. ● Compared to steel outer periphery, it has a noise and vibration absorbing effect. Applications: ● Guide rollers, door rollers, holding and anti-vibration rollers. Specifications: ● Bearing: 6200ZZ ● Inner diameter (mm): 10 ● Outer diameter (mm): 40 ● Width (mm): 12 ● Estimated load (N): 250 ● Bearing precision grade: JIS B 1514 Grade 0 ● Operating temperature range: -20 to 80°C ● Resin molded bearing (product with built-in JIS bearing) Material/Finish: ● Bearing: Steel ● Outer periphery: Polyacetal resin (POM) ● Bolt: Steel Note: ● This is an estimated load value and is not a guaranteed value.
