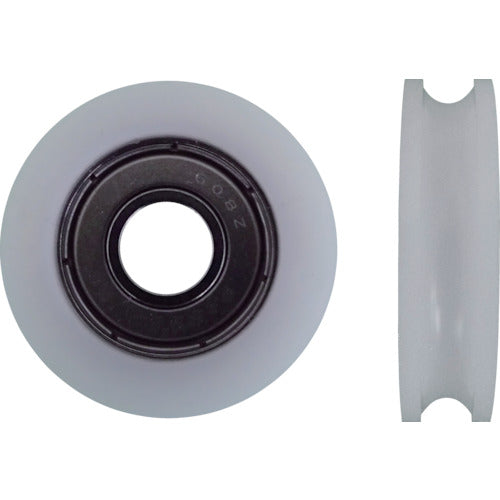

Eastern Plastic Bearing EU Type EU-0830 1 pc

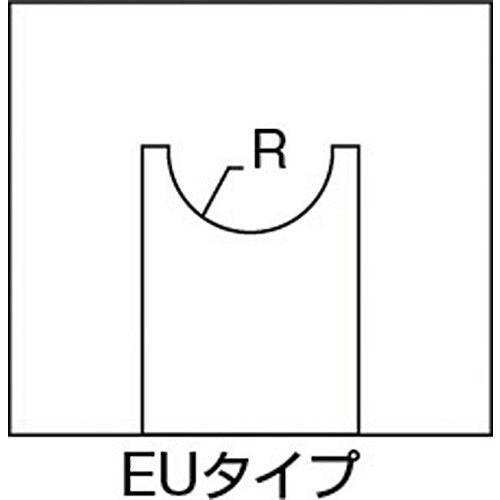

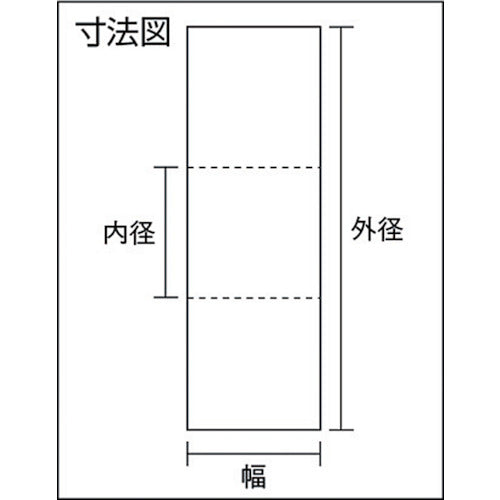

Catalogue number: EU-0830 Features: ● Resin molded bearing with built-in precision bearing. ● Compared to steel outer periphery, it has a noise and vibration absorbing effect. Applications: ● Guide rollers, doors (hanging doors), pulleys, tension wires. Specifications: ● Bearing: 608ZZ ● Inner diameter (mm): 8 ● Outer diameter (mm): 30 ● Width (mm): 9 ● Estimated load (N): 200 ● Dimensions (mm) R: 2.5 ● Bearing precision grade: JIS B 1514 Grade 0 ● Operating temperature range: -20 to 80°C ● Resin molded bearing (product with built-in JIS bearing) Material/Finish: ● Bearing: Steel ● Outer periphery: Polyacetal resin (POM) ● Bolt: Steel Note: ● This is an estimated load value and is not a guaranteed value.
