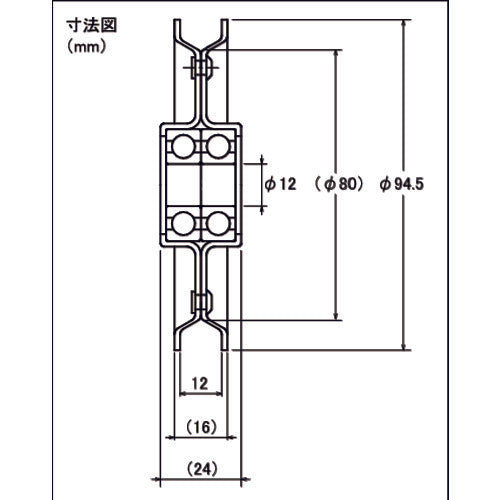

Catalog number: PULLEY-1294 Features: ● With ball bearings, it is designed to be quiet and heavy duty. Applications: ● As a pulley using wire. (Compatible with wire diameters up to φ10) Specifications: ● Basic load capacity (t): 0.08 ● Maximum rope diameter (mm): 10 ● Inner diameter (mm): 12 ● Outer diameter (mm): 94.5 ● Width (mm): 24 ● Groove diameter (mm): 80 Material/Finish: ● Steel (SPCC)/with trivalent chromate plating
