ウォーターミルズ社

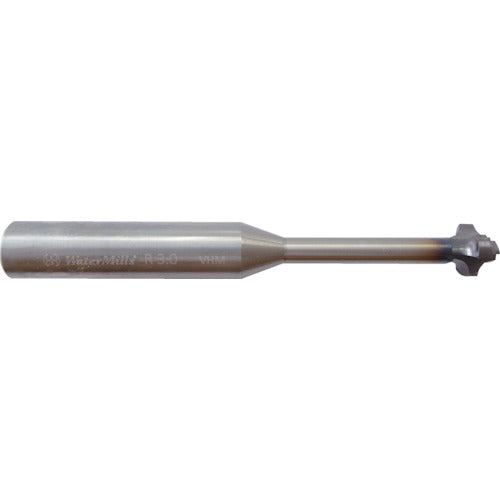

Water Mills Back Countersink R Chamfer Mills R2.0 9.9D x 100 TiAlCN WMRC10099L35R20 1 piece
Water Mills Back Countersink R Chamfer Mills R2.0 9.9D x 100 TiAlCN WMRC10099L35R20 1 piece
Regular price
¥31,780
Regular price
Sale price
¥31,780
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

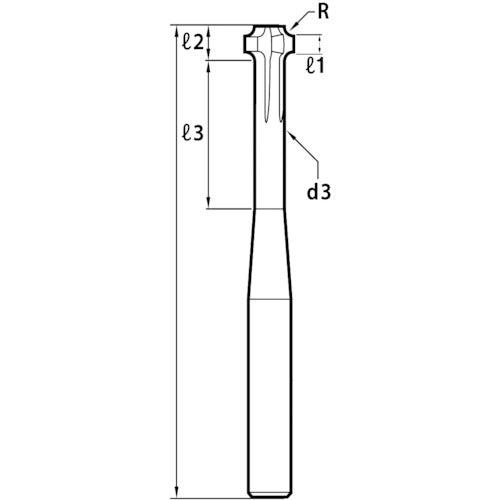

Catalog number: WMRC10099L35R20 Features: ●Can chamfer the R on both sides of drill holes and machined surfaces. Applications: ●For chamfering the R on both sides of drill holes and machined surfaces. Specifications: ●Number of teeth (pieces): 3 ●Total length (mm): 100 ●Shank diameter (mm): 10 ●L1 (mm): 2.82 ●L2 (mm): 6.8 ●L3 (mm): 35 ●d3 (mm): 5.6 ●Number of teeth: 3 ●Effective blade diameter (mm): 9.9 ●Surface treatment: TiAICN coating ●R±0.02: 2.0 ●Surface treatment: TiAICN coating Material/Finish: ●Ultra-fine grain carbide + TiAlCN coating
View full details
