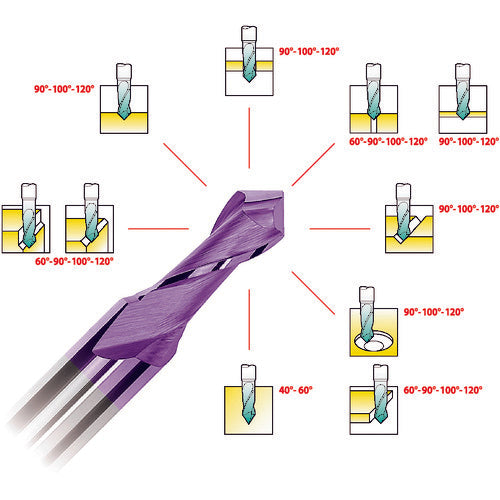

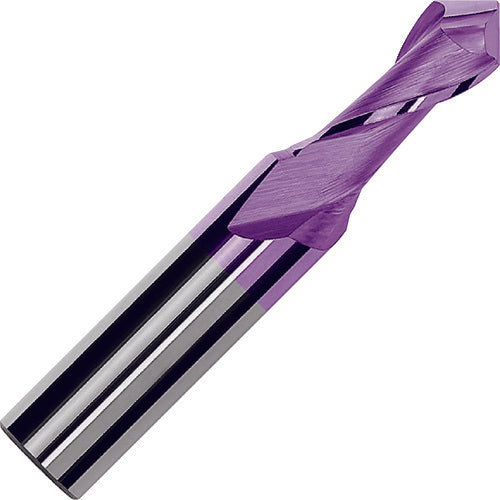

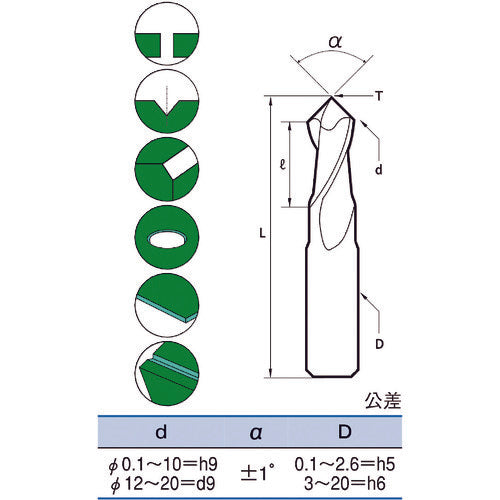

Catalog number: WMMFX25S3L39 Features: ●A single tool that can perform drilling, chamfering, and V-grooving, shortening tool change and setup time. ●The number of tools in stock can be reduced, allowing for more effective use of a limited number of tool stations. Applications: ●For drilling, chamfering, and grooving Specifications: ●Blade diameter (mm): 2.5 ●Groove length (mm): 5 ●Total length (mm): 39 ●Shank diameter (mm): 3 ●Tip angle (°): 90 ●Surface treatment: TiAlN coating ●Effective blade length (mm): 5.0 ●Tip angle (°): ●90 Material/Finish: ●Fine grain carbide
