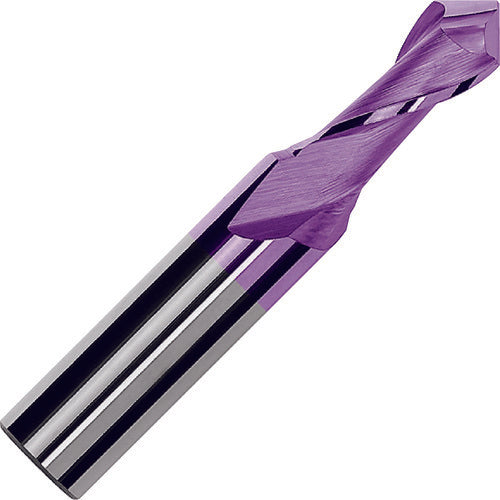

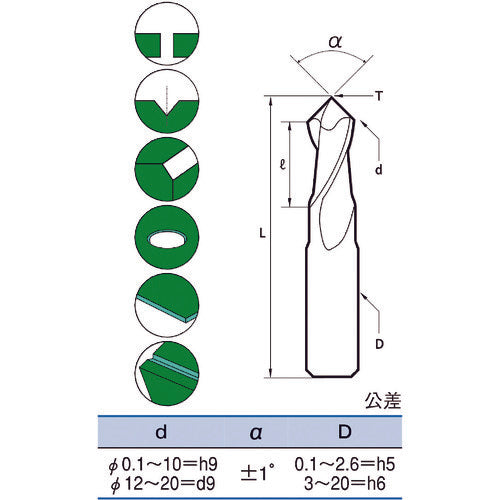

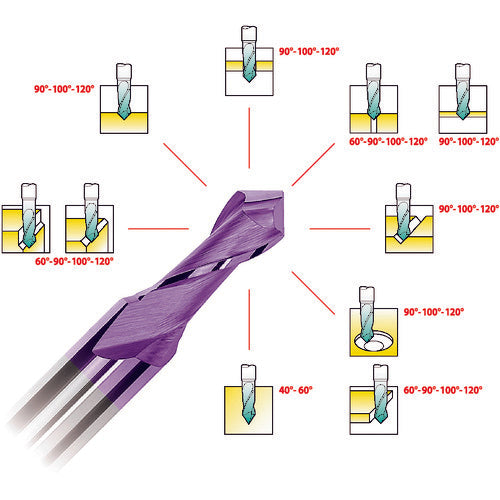

Catalogue number: WMMFX40S5L50 Features: ●A single tool capable of drilling, chamfering and V-grooving, shortening tool change and setup time. ●The number of tools in stock can be reduced, allowing for more effective use of a limited number of tool stations. Applications: ●For drilling, chamfering and grooving Specifications: ●Blade diameter (mm): 4.0 ●Groove length (mm): 8 ●Total length (mm): 50 ●Shank diameter (mm): 5 ●Tip angle (°): 90 ●Surface treatment: TiAlN coating ●Effective blade length (mm): 8.0 ●90 Material/Finish: ●Fine grain carbide
