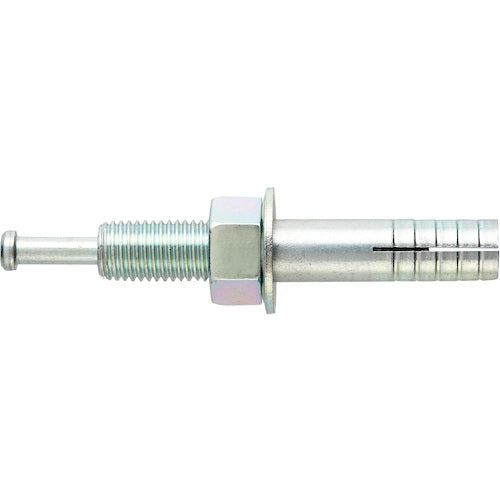

AY Fastener Tight Anchor C-1050 Trivalent C-1050 50 pieces

Catalogue number: C-1050 Features: ● Simple installation by simply driving in the core rod, so installation is clear at a glance ● Can be installed from above the object to be attached ● Body diameter and screw nominal diameter are the same Applications: ● Machine installation, fixing electrical conduits, installing signs and advertising towers ● HVAC installation ● Ladders installation ● Lighting installation ● Fences and handrail installation Specifications: ● Screw nominal: M10 ● Total length (mm): 50 ● Screw length (mm): 20 ● Maximum object thickness (mm): 7 ● Pilot hole diameter (mm): 10.5 ● Maximum tensile load (kN): 14.1 ● Embedded depth (mm): 30 Material/Finish: ● Steel ● Surface treatment: Trivalent chromate
