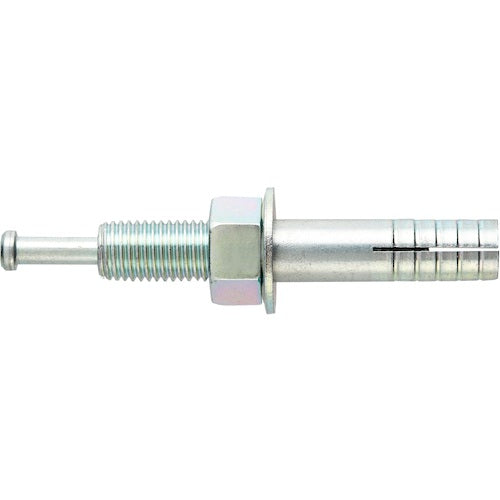

AY Fastener Tight Anchor C-1270 Trivalent C-1270 30 pieces

Catalogue number: C-1270 Features: ● Simple installation by simply driving in the core rod, so installation is clear at a glance ● Can be installed from above the object being attached ● Body diameter and screw nominal diameter are the same Applications: ● Machine installation, fixing electrical conduits, installing signs and advertising towers ● Installation of heating and cooling systems and air conditioning ● Installation of ladders ● Installation of lighting fixtures ● Installation of fences and handrails Specifications: ● Screw nominal size: M12 ● Total length (mm): 70 ● Screw length (mm): 25 ● Maximum thickness of object being attached (mm): 9 ● Pilot hole diameter (mm): 12.7 ● Maximum tensile load (kN): 16.8 ● Embedded depth (mm): 45 Material/Finish: ● Steel ● Surface treatment: Trivalent chromate
