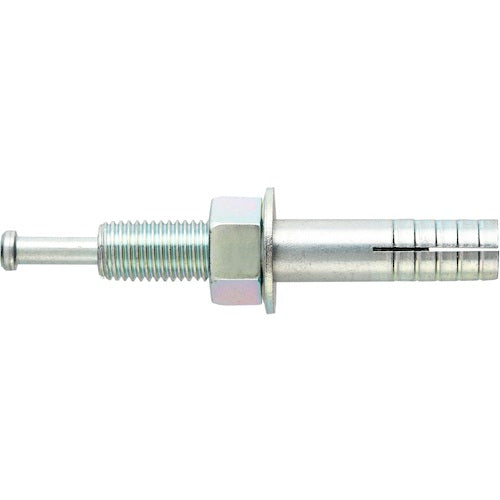

AY Fastener Tight Anchor C-1680 Trivalent C-1680 15 pieces

Catalogue number: C-1680 Features: ● Simple installation by simply driving in the core rod; completion of installation is clear at a glance ● Can be installed from above the object to be attached ● Body diameter and screw nominal diameter are the same Applications: ● Machine installation, fixing of electrical conduits, installation of signs and advertising towers ● Installation of heating and cooling systems and air conditioning ● Installation of ladders ● Installation of lighting fixtures ● Installation of fences and handrails Specifications: ● Screw nominal size: M16 ● Total length (mm): 80 ● Screw length (mm): 30 ● Maximum thickness of object to be attached (mm): 10 ● Pilot hole diameter (mm): 17.0 ● Maximum tensile load (kN): 19.0 ● Embedded depth (mm): 50 Material/Finish: ● Steel ● Surface treatment: Trivalent chromate
