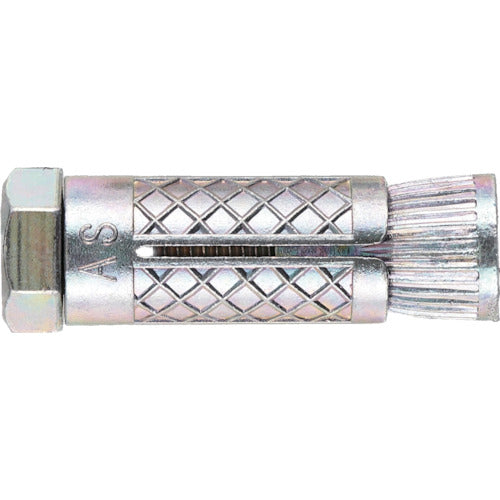

AY Fastener AY Plug Bolt SAY-1260AS (Hexagon Bolt) Stainless Steel SAY-1260AS 10 Pieces
AY Fastener AY Plug Bolt SAY-1260AS (Hexagon Bolt) Stainless Steel SAY-1260AS 10 Pieces
Regular price
¥5,796
Regular price
Sale price
¥5,796
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: SAY-1260AS Features: ●Zinc die-cast sleeves have zero self-corrosion. ●Tapered nut ensures that the sleeve is securely fixed. Applications: ●Used for attaching all kinds of equipment and fixtures to concrete, blocks, bricks, tiles, and marble. Specifications: ●Thread size: M12 ●Drill diameter (mm): 20 ●Maximum tensile load (kN): 22.2 ●Outer diameter (mm): 19.2 ●Embedded depth (mm): 42.5 ●Pilot hole diameter (mm): 20.0 ●Bolt diameter x bolt length (mm): M12 x 60 ●Bolt dimensions (mm): 60 ●Sleeve length (mm): 42.5 Materials/Finish: ●Screws and bolts: Stainless steel ●Tapered nut and sleeve: Zinc die-cast
