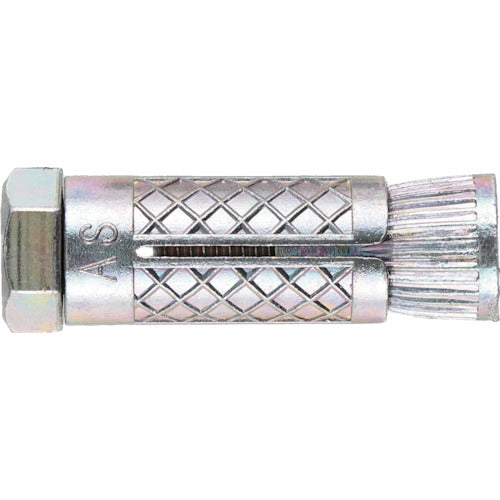

AY Fastener AY Plug Bolt SAY-3050AS (Hexagon Bolt) Stainless Steel SAY-3050AS 15 Pieces

Catalog number: SAY-3050AS Features: ●Zinc die-cast sleeves have zero self-corrosion. ●Tapered nut ensures that the sleeve is securely fixed. Applications: ●Used for attaching all kinds of equipment and fixtures to concrete, blocks, bricks, tiles, and marble. Specifications: ●Thread size: W3/8 ●Drill diameter (mm): 18 ●Maximum tensile load (kN): 20.2 ●Outer diameter (mm): 17.5 ●Embedded depth (mm): 37 ●Pilot hole diameter (mm): 18.0 ●Bolt diameter x bolt length (mm): W3/8 x 50 ●Bolt dimensions (mm): 50 ●Sleeve length (mm): 37 Materials/Finish: ●Screws and bolts: Stainless steel ●Tapered nut and sleeve: Zinc die-cast
