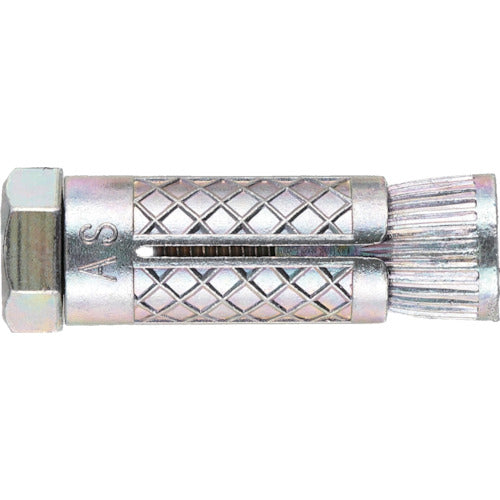

AY Fastener AY Plug Bolt SAY-845AS (Hexagon Bolt) Stainless Steel SAY-845AS 30 Pieces

Catalogue number: SAY-845AS Features: ●Zinc die-cast sleeves have zero self-corrosion. ●Tapered nut ensures that the sleeve is securely fixed. Applications: ●Used for attaching all kinds of equipment and fixtures to concrete, blocks, bricks, tiles, and marble. Specifications: ●Thread size: M8 ●Drill diameter (mm): 14 ●Maximum tensile load (kN): 13.5 ●Outer diameter (mm): 13.5 ●Embedded depth (mm): 32 ●Pilot hole diameter (mm): 14.0 ●Bolt diameter x bolt length (mm): M8 x 45 ●Bolt dimensions (mm): 45 ●Sleeve length (mm): 32 Material/Finish: ●Screws and bolts: Stainless steel ●Tapered nut and sleeve: Zinc die-cast
