Eslon Mini Ball, Female Thread Rc1/4 x Female Thread Rc1/4 MV6GG 1 pc

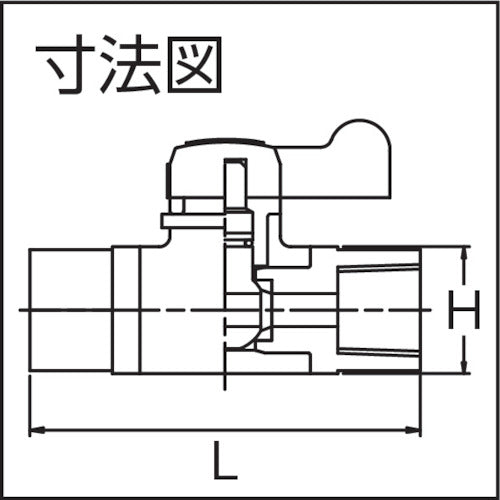

Catalog number: MV6GG Features: ● Suitable for various piping without corrosion from acidic or alkaline chemicals or seawater. Applications: ● Chemical piping in chemical plants, wastewater piping in semiconductor plants, seawater piping in fisheries plants, wastewater treatment lines in food plants, etc. Specifications: ● PVC pipe nominal diameter: Female thread Rc1/4 x Female thread Rc1/4 ● L (mm): 71 ● H (mm): 47 ● Operating temperature range: 0 to 50°C ● Maximum operating pressure: 1.0MPa Material/Finish: ● Rigid polyvinyl chloride (PVC) ● O-ring: EPDM
