Eslon PVC ball valve, flange type, PVC body, EPDM O-ring, 25, length 187mm x height 132mm, BV25FX, 1 piece

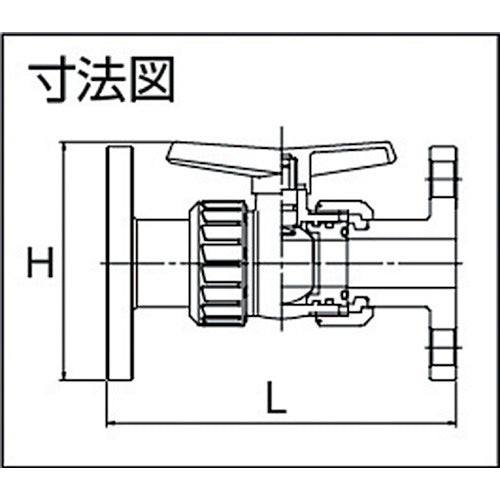

Catalog number: BV25FX Features: ●A lightweight, compact plastic valve with excellent corrosion resistance. ●It can be used safely without being corroded by acidic or alkaline chemicals or seawater. ●The main body and parts are made of rigid polyvinyl chloride (PVC), so they have excellent chemical resistance. ●The structure has been completely redesigned to a single carrier system. The ball retainer is a left-handed threaded assembly type, so the ball retainer will not come off when the union nut is removed, even if the parts are degreased by oil-free processing, etc. Applications: ●Chemical plant chemical piping, semiconductor plant wastewater piping, fishery plant seawater piping, food plant wastewater treatment line, etc. Specifications: ● PVC pipe nominal diameter: 25 ● L (mm): 187 ● H (mm): 132 ● Maximum operating pressure (MPa): 1.0 ● Operating temperature range (℃): 0 to 50 ● Fluid temperature (℃): Maximum operating temperature: 50℃ ● Operating temperature range: 0 to 50℃ ● Maximum operating pressure: 1.0MPa ● JIS 10K flange Material/Finish: ● Rigid polyvinyl chloride (PVC) ● O-ring: EPDM Note: ● Like other thermoplastic plastic products, Eslon valves have the property of losing strength as the temperature rises.
