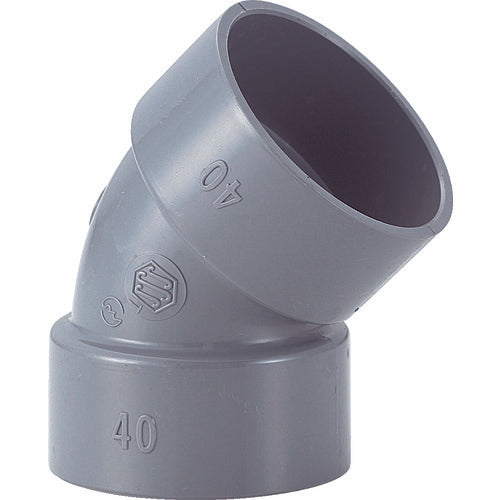

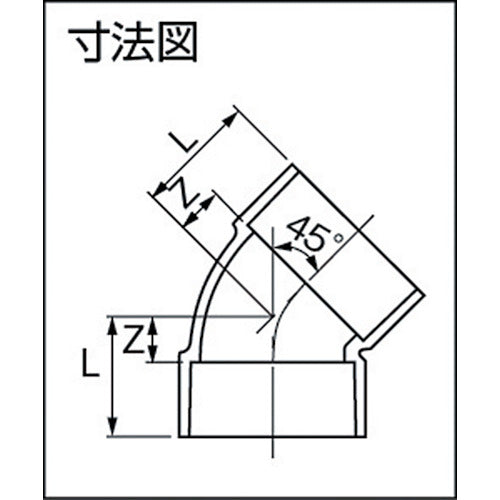

Catalog number: D4L40 Features: ● The inlet length is short and the taper is gently set, so there is no step. Applications: ● Miscellaneous drainage in buildings, dirty drainage, ventilation, rainwater drainage. ● VP pipe dedicated fitting Specifications: ● PVC pipe nominal diameter: 40 ● Dimensions (mm) L: 36 ● Dimensions (mm) Z: 14 ● Operating temperature range (℃): 5 to 40 ● Operating temperature range: 5 to 40℃ ● JIS K6739 standard product ● Maximum operating pressure: No pressure Material / Finish: ● Rigid polyvinyl chloride (PVC)
