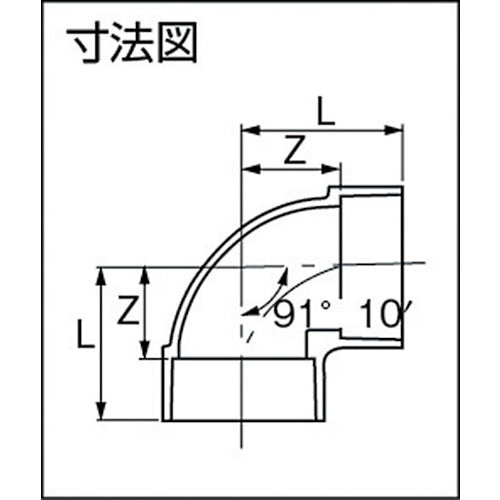

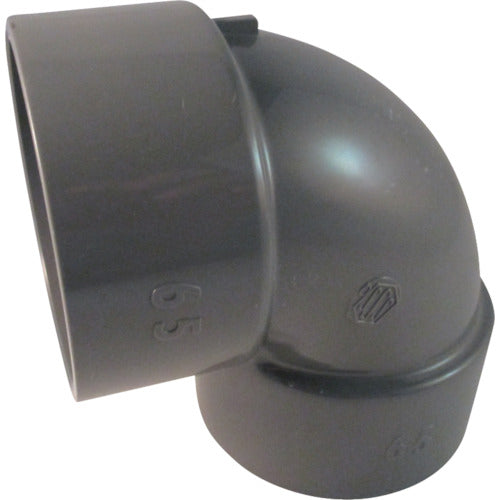

Catalog number: DDL65 Features: ● The inlet length is short and the taper is gently set, so there is no step. Applications: ● Miscellaneous drainage in buildings, dirty drainage, ventilation, rainwater drainage. ● VP pipe dedicated fitting Specifications: ● PVC pipe nominal diameter: 65 ● Dimensions (mm) L: 77 ● Dimensions (mm) Z: 42 ● Operating temperature range: 5 to 40°C ● JIS K6739 standard product ● Maximum operating pressure: No pressure Material / Finish: ● Rigid polyvinyl chloride (PVC)
