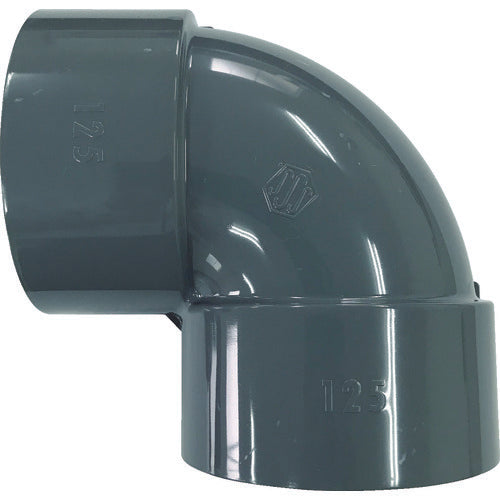

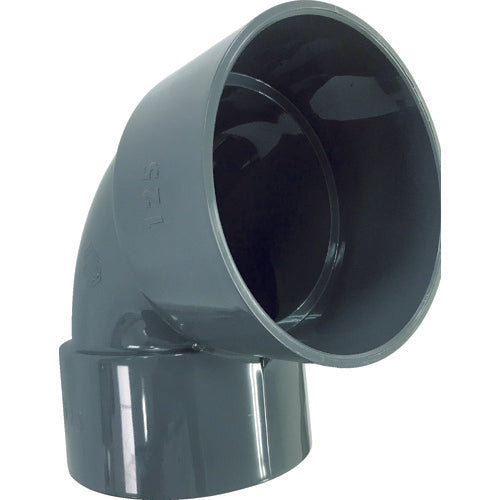

Catalog number: DDL1Q Features: ● The inlet length is short and the taper is set gently, so there is no step. Applications: ● Miscellaneous drainage in buildings, dirty drainage, ventilation, rainwater drainage. ● VP pipe dedicated fitting Specifications: ● PVC pipe nominal diameter: 125 ● Dimensions (mm) L: 140 ● Dimensions (mm) Z: 75 ● Operating temperature range: 5 to 40°C ● JIS K6739 standard product ● Maximum operating pressure: No pressure Material / Finish: ● Rigid polyvinyl chloride (PVC)
