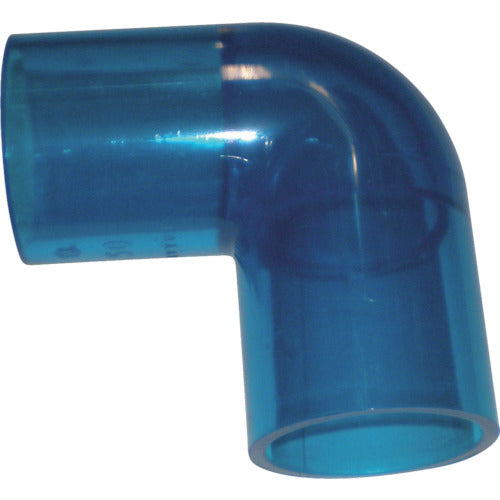

Eslon HI joint, transparent blue, elbow 50, EHIL50, 1 piece

Catalog number: EHIL50 Features: ●Because the joint is transparent blue, you can check whether or not the adhesive has been applied after installation by using Eslon adhesive NO83S (white). ●Can be used for water supply piping. ●Installation can be done quickly because of adhesive jointing. ●Fittings exclusively for HI pipes. Applications: ●By using Eslon adhesive NO83 (white), you can check whether the adhesive has been applied even after curing (drying). ●Used for water supply piping inside buildings. Specifications: ●Nominal diameter of PVC pipe: 50 ●Dimensions (mm) D: 70 ●Maximum operating temperature (℃): 40 ●Outer diameter: 70.0 ●There is a tolerance for each dimension ●Color: Transparent blue ●Material: Impact-resistant rigid polyvinyl chloride ●Maximum operating temperature and pressure for fluid water is less than 40℃ (1.0Mpa or less) ●Fittings exclusively for HI pipes Material/Finish: ●Impact-resistant rigid polyvinyl chloride Caution: ●Please be especially careful when ventilating. ●When installing, be sure to refer to the reference materials (installation, performance, and safety precautions) in the Eslon Pipe Catalog "General Catalog." Failure to do so may result in serious accidents such as water leakage.
