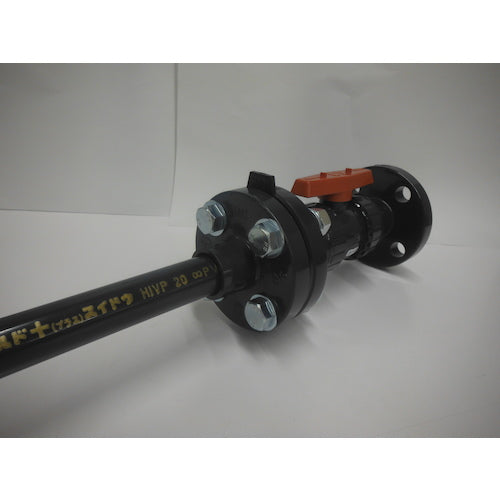

Eslon HI-TS flange JIS10K HI-PVC 25A TSFHI25 1 pc

Catalog number: TSFHI25 Features: *Highly impact resistant HI-PVC flange. *Safe to use without worrying about corrosion from acidic or alkaline chemicals or seawater. Applications: *For chemical piping in chemical plants, wastewater piping in semiconductor plants, seawater piping in fisheries plants, wastewater treatment lines in food plants, etc. Specifications: ●Nominal diameter A: 25 ●Nominal diameter B: 1 ●Inner diameter (mm): 25 ●Outer diameter (mm): 125 ●Thickness (mm): 14 ●Number of bolt holes (pcs): 4 ●Bolt hole diameter (mm): 19 ●Operating pressure (K): 10 ●Bolt hole center diameter (mm): 90 ●L (mm): 45 ●Number of holes (pcs): 4 ●Size: 25A ●PVC pipe nominal diameter: 25 ●Material: Impact-resistant rigid polyvinyl chloride (HI-PVC) ●Nominal diameter: 1B ●Applicable bolt neck length (mm): 55 ●Applicable bolt nominal (mm): M16 ●Maximum operating temperature: 60°C ●Maximum allowable pressure: 1.0MPa (20°C) ●JIS10K specification (JIS B2220 standard compliant) Material/Finish: ●Rigid polyvinyl chloride (impact-resistant type HI-PVC) Caution: ●When using adhesives, please be careful to ventilate the room. ●Please use standard installation methods. ● Pay attention to the tightening torque. ● Be careful not to tighten unevenly.
