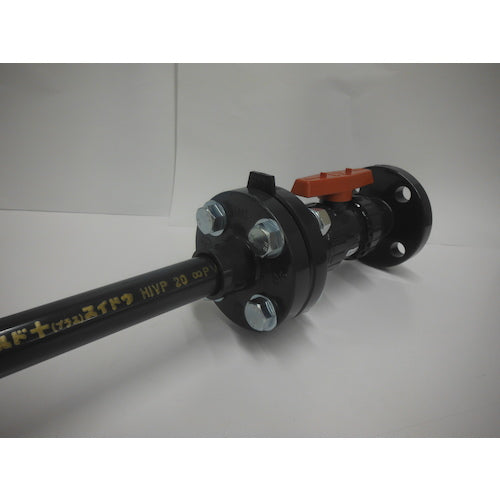

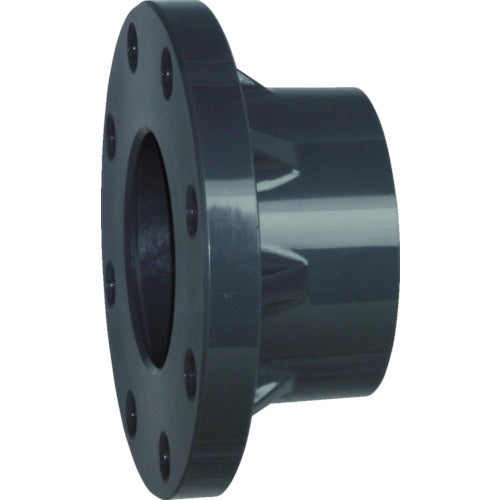

Eslon HI-TS flange JIS10K HI-PVC 80A TSFHI80 1 piece

Catalog number: TSFHI80 Features: *HI-PVC flange with excellent impact resistance. *Safe to use without worrying about corrosion from acidic or alkaline chemicals or seawater. Applications: *For piping in chemical plants, wastewater piping in semiconductor plants, seawater piping in fisheries plants, wastewater treatment lines in food plants, etc. Specifications: ●Nominal diameter A: 80 ●Nominal diameter B: 3 ●Inner diameter (mm): 78 ●Outer diameter (mm): 185 ●Thickness (mm): 22 ●Number of bolt holes (pcs): 8 ●Bolt hole diameter (mm): 19 ●Operating pressure (K): 10 ●Bolt hole center diameter (mm): 150 ●L (mm): 72 ●Number of holes (pcs): 8 ●Nominal diameter: 3B ●Size: 80A ●Material: Impact-resistant rigid polyvinyl chloride (HI-PVC) ●PVC pipe nominal diameter: 75 ●Applicable bolt neck length (mm): 75 ●Applicable bolt nominal (mm): M16 ●Maximum operating temperature: 60°C ●Maximum allowable pressure: 1.0MPa (20°C) ●JIS10K specification (JIS B2220 standard compliant) Material/Finish: ●Rigid polyvinyl chloride (impact-resistant type HI-PVC) Caution: ●When using adhesives, please be careful to ventilate the room. ●Please use standard installation methods. ● Pay attention to the tightening torque. ● Be careful not to tighten unevenly.
