Eslon HI-TS Elbow Fitting 30 HIL30 1 pc

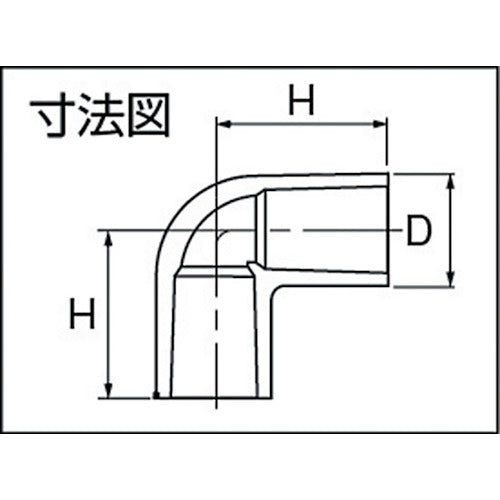

Catalog number: HIL30 Features: ●A rigid polyvinyl chloride fitting with excellent corrosion resistance. ●By using our proprietary HI Gold resin, we have achieved more than twice the impact resistance and more than four times the adhesive strength of conventional resins. Applications: ●Fittings for impact-resistant rigid polyvinyl chloride fittings (HI pipes). Specifications: ●Nominal diameter of PVC pipe: 30 ●Dimensions (mm) D: 46 ●Dimensions (mm) H: 65 ●Usage temperature range: 5 to 40°C ●Maximum operating pressure: 1.0MPa ●JIS K6743 standard product Material/Finish: ●Impact-resistant rigid polyvinyl chloride (HI-PVC)
