Eslon HI-TS fitting 45° elbow 25 HI4L25 1 piece

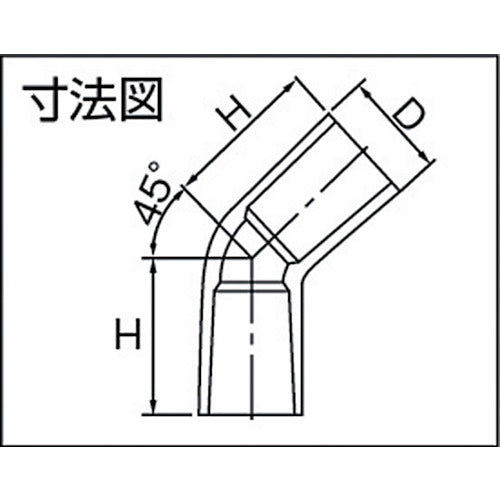

Catalog number: HI4L25 Features: ●A rigid polyvinyl chloride fitting with excellent corrosion resistance. ●By using our own proprietary HI Gold resin, we have been able to demonstrate more than twice the impact resistance and more than four times the adhesive strength compared to conventional resins. Applications: ●Fittings for impact-resistant rigid polyvinyl chloride fittings (HI pipes). Specifications: ●Nominal diameter of PVC pipe: 25 ●Dimensions (mm) D: 40 ●Dimensions (mm) H: 51 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): 5 to 40 ●Operating temperature range: 5 to 40℃ ●Maximum operating pressure: 1.0MPa ●JIS K6743 standard product Material/Finish: ●Impact-resistant rigid polyvinyl chloride (HI-PVC)
