Eslon HI-TS fitting 45° elbow 50 HI4L50 1 piece

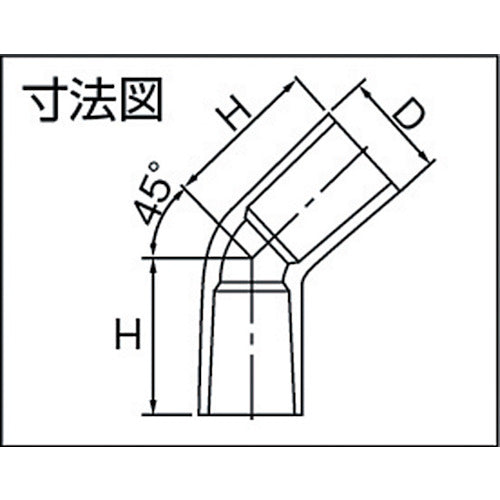

Catalog number: HI4L50 Features: ●A rigid polyvinyl chloride fitting with excellent corrosion resistance. ●By developing and using our own HI Gold resin, we have been able to demonstrate more than twice the impact resistance and more than four times the adhesive strength compared to conventional resins. Applications: ●Fittings for impact-resistant rigid polyvinyl chloride fittings (HI pipes). Specifications: ●Nominal diameter of PVC pipe: 50 ●Dimensions (mm) D: 70 ●Dimensions (mm) H: 81 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): 5 to 40 ●Operating temperature range: 5 to 40℃ ●Maximum operating pressure: 1.0MPa ●JIS K6743 standard product Material/Finish: ●Impact-resistant rigid polyvinyl chloride (HI-PVC)
