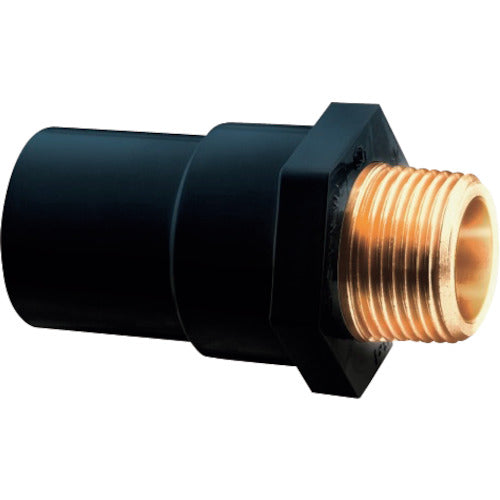

Eslon HI-TS Fitting Insert Valve Socket 25 R1 IIVS25M 1 pc

Catalog number: IIVS25M Features: ●A rigid polyvinyl chloride joint with excellent corrosion resistance. ●We have developed and adopted our own HI Gold resin, which has more than twice the impact resistance and more than four times the adhesive strength compared to conventional resins. Applications: ●For water supply pipes in apartment buildings, detached houses, stores, facilities, etc. ●For impact-resistant rigid polyvinyl chloride joints (HI pipes). Specifications: ●Nominal diameter of PVC pipe: 25 ●Dimensions (mm) D: 40 ●Dimensions (mm) L: 85 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): 5 to 40 ●Thread: R1 ●Operating temperature range: 5 to 40℃ ●Maximum operating pressure: 1.0MPa ●JIS K6743 standard Material/Finish: ●Impact-resistant rigid polyvinyl chloride (HI-PVC)
