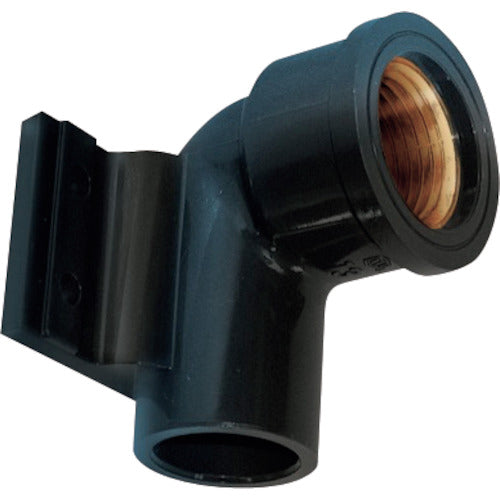

Eslon HI-TS fitting, insert seat included, faucet elbow 13, Rp1/2, IIZL13M, 1 piece

Catalog number: IIZL13M Features: ●A joint made of rigid polyvinyl chloride with excellent corrosion resistance. ●Eslon pipes are made of pure rigid polyvinyl chloride, which is harmless to the human body and does not color or smell water. ●We have developed and adopted our own HI Gold resin, which has more than twice the impact resistance and more than four times the adhesive strength compared to conventional HI resins. Applications: ●For use with water supply pipes in apartment buildings, detached houses, stores, facilities, etc. ●For impact-resistant rigid polyvinyl chloride joints (HI pipes). Specifications: ● PVC pipe nominal diameter (mm): 13 ● H1 (mm): 29 ● D (mm): 24 ● H (mm): 38 ● Maximum operating temperature (℃): 40 (Do not use in pipes that are heated by a heat source even if the temperature is below 40℃) ● Impact-resistant rigid polyvinyl chloride pipe (HI-PVC) ● Maximum operating pressure: 0.98MPa Material/Finish: ● Threaded part: Tapered male thread of JIS B0203 ● Insert: CAC406C of JIS H5121 Caution: ● When using adhesive, please be careful to ventilate the area. ● Please use standard installation methods. ● Be sure to refer to the installation, performance, and safety precautions in the catalog reference materials. ● Use Eslon adhesive No. 80 and No. 83 as adhesives.
