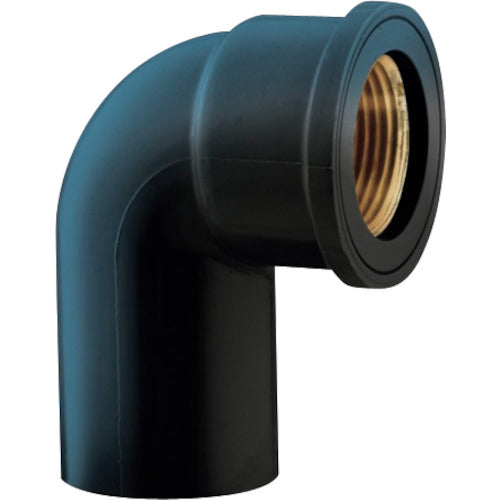

Eslon HI-TS Fitting Insert Faucet Elbow 20 Rp3/4 IIWL20M 1 pc

Catalog number: IIWL20M Features: ●A joint made of rigid polyvinyl chloride with excellent corrosion resistance. ●We have developed and adopted our own HI Gold resin, which has more than twice the impact resistance and more than four times the adhesive strength compared to conventional resins. Applications: ●For water supply pipes in apartment buildings, detached houses, stores, facilities, etc. ●For impact-resistant rigid polyvinyl chloride joints (HI pipes). Specifications: ●Nominal diameter of PVC pipe: 20 ●Dimensions (mm) D: 33 ●Dimensions (mm) H: 51 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): 5 to 40 ●Thread: Rp3/4 ●Operating temperature range: 5 to 40℃ ●Maximum operating pressure: 1.0MPa ●JIS K6743 standard product Material/Finish: ●Impact-resistant rigid polyvinyl chloride (HI-PVC)
