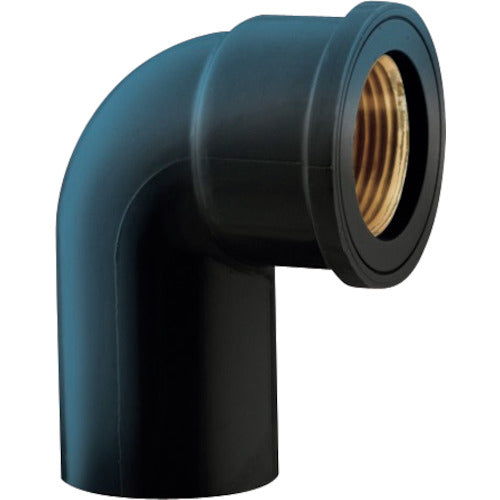

Eslon HI-TS Fitting Insert Faucet Elbow 25 Rp1 IIWL25M 1 pc

Catalog number: IIWL25M Features: ●A joint made of rigid polyvinyl chloride with excellent corrosion resistance. ●By developing and adopting our own HI Gold resin, it is now possible to demonstrate more than twice the impact resistance and more than four times the adhesive strength compared to conventional resins. Applications: ●For water supply pipes in apartment buildings, detached houses, stores, facilities, etc. ●For impact-resistant rigid polyvinyl chloride joints (HI pipes). Specifications: ●Nominal diameter of PVC pipe: 25 ●Dimensions (mm) D: 40 ●Dimensions (mm) H: 59 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): 5 to 40 ●Thread: Rp1 ●Operating temperature range: 5 to 40℃ ●Maximum operating pressure: 1.0MPa ●JIS K6743 standard product Material/Finish: ●Impact-resistant rigid polyvinyl chloride (HI-PVC)
