Eslon HI-TS fitting Tee 16 HIT16 1 piece

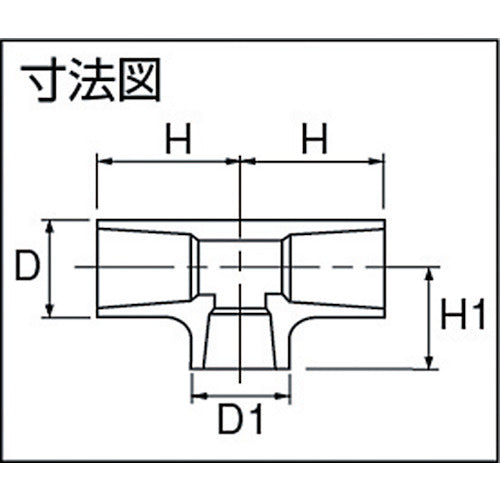

Catalog number: HIT16 Features: ●A rigid polyvinyl chloride joint with excellent corrosion resistance. ●By developing and using our own HI Gold resin, we have been able to demonstrate more than twice the impact resistance and more than four times the adhesive strength compared to conventional resins. Applications: ●A joint exclusively for water supply pipes in apartment buildings, detached houses, stores, facilities, etc. Joint for impact-resistant rigid polyvinyl chloride joints (HI pipes). Specifications: ●Nominal diameter of PVC pipe: 16 x 16 ●Dimensions (mm) D: 29 ●Dimensions (mm) D1: 29 ●Dimensions (mm) H: 43 ●Dimensions (mm) H1: 43 ●Usage temperature range: 5 to 40°C ●Maximum operating pressure: 1.0MPa ●JIS K6743 standard product Material/Finish: ●Impact-resistant rigid polyvinyl chloride (HI-PVC)
