Eslon HI-TS fitting Tee 25 HIT25 1 piece

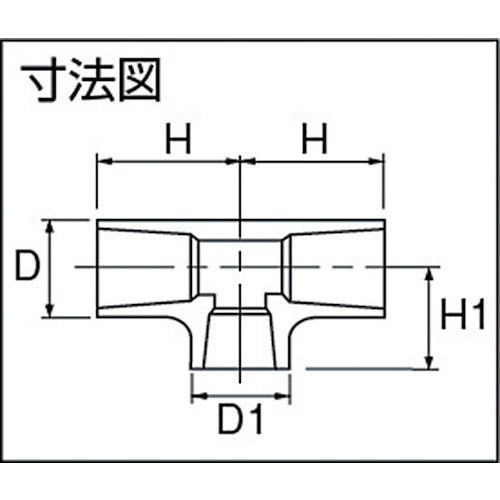

Catalog number: HIT25 Features: ●A rigid polyvinyl chloride joint with excellent corrosion resistance. ●We have developed and adopted our own HI Gold resin, which has more than twice the impact resistance and more than four times the adhesive strength of conventional resins. Applications: ●A joint exclusively for water supply pipes in apartment buildings, detached houses, stores, facilities, etc. Joint for impact-resistant rigid polyvinyl chloride joints (HI pipes). Specifications: ●Nominal diameter of PVC pipe: 25 x 25 ●Dimensions (mm) D: 40 ●Dimensions (mm) D1: 40 ●Dimensions (mm) H: 58 ●Dimensions (mm) H1: 58 ●Usage temperature range: 5 to 40°C ●Maximum operating pressure: 1.0MPa ●JIS K6743 standard product Material/Finish: ●Impact-resistant rigid polyvinyl chloride (HI-PVC)
