Eslon HI-TS fitting Tee 30 HIT30 1 piece

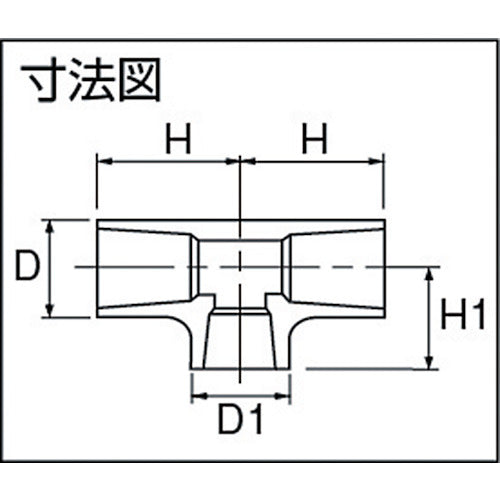

Catalog number: HIT30 Features: ●A rigid polyvinyl chloride joint with excellent corrosion resistance. ●We have developed and adopted our own HI Gold resin, which has more than twice the impact resistance and more than four times the adhesive strength compared to conventional resins. Applications: ●A joint exclusively for water supply pipes in apartment buildings, detached houses, stores, facilities, etc. Joint for impact-resistant rigid polyvinyl chloride joints (HI pipes). Specifications: ●Nominal diameter of PVC pipe: 30 x 30 ●Dimensions (mm) D: 46 ●Dimensions (mm) D1: 46 ●Dimensions (mm) H: 65 ●Dimensions (mm) H1: 65 ●Usage temperature range: 5 to 40°C ●Maximum operating pressure: 1.0MPa ●JIS K6743 standard product Material/Finish: ●Impact-resistant rigid polyvinyl chloride (HI-PVC)
