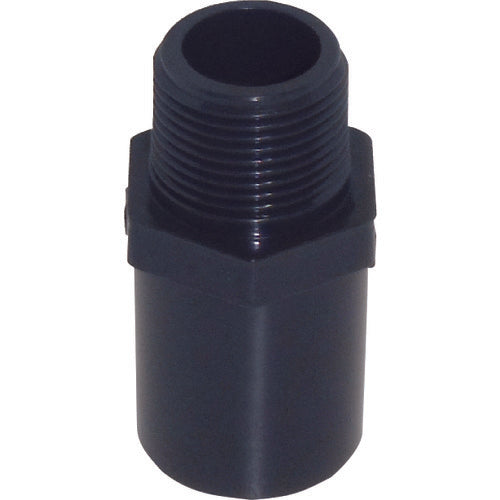

Eslon HI-TS fitting valve socket 50 HIVS50 1 piece

Catalog number: HIVS50 Features: ●Fittings made of rigid polyvinyl chloride with excellent corrosion resistance. ●Sekisui's HI pipes and fittings use our own HI Gold resin, which has more than twice the impact resistance and more than four times the adhesive strength of conventional resins. Applications: ●Fittings exclusively for Eslon HI pipes for apartment buildings, detached houses, stores, facilities, etc. ●Please use Eslon NO80S or NO83S adhesive. Specifications: ●Nominal diameter of PVC pipe: 50 ●Dimensions (mm) D: 70 ●Dimensions (mm) L: 70 ●D (mm): 70 ●Thread: R 2 ●Maximum operating pressure: 1.0MPa (normal temperature, water) ●Made in a factory certified to ISO14001 ●JIS K6743 Material/Finish: ●Rigid polyvinyl chloride (impact-resistant type HI-PVC) ●HI-PVC ●The entire thread and fitting are made of resin. Caution: ●When using adhesives, please be careful to ventilate the room. ●Please use standard installation methods. ●Please be sure to refer to the reference materials in the catalog regarding installation, performance and safety.
