Eslon HI-TS fitting, reducing socket, 20 x 16, HIS201, 1 piece

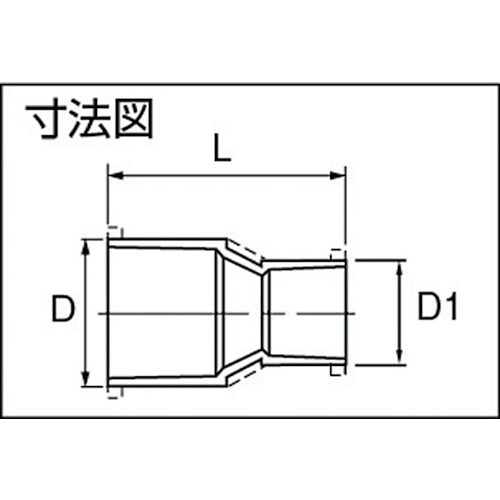

Catalog number: HIS201 Features: ●A rigid polyvinyl chloride fitting with excellent corrosion resistance. ●By using our own HI Gold resin, we have achieved more than twice the impact resistance and more than seven times the adhesive strength compared to conventional resins. Applications: ●Fittings for impact-resistant rigid polyvinyl chloride fittings (HI pipes). Specifications: ●Nominal diameter of PVC pipe: 20 x 16 ●Dimensions (mm) D: 33 ●Dimensions (mm) L: 71 ●Dimensions (mm) D1: 29 ●Operating temperature range: 5 to 40°C ●Maximum operating pressure: 1.0MPa ●JIS K6743 or AS21 standards Material/Finish: ●Impact-resistant rigid polyvinyl chloride (HI-PVC)
