Eslon HT Fitting C (Cap) 40 THC40 1 pc

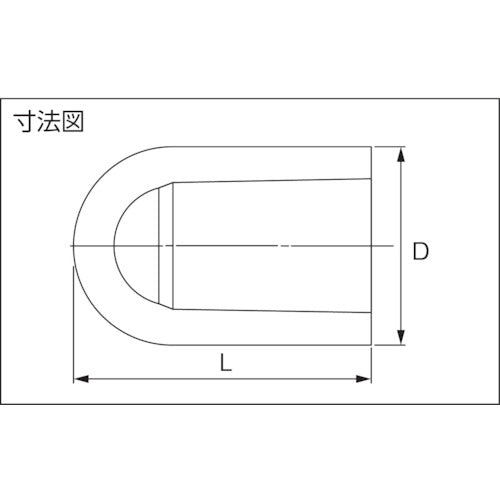

Catalog number: THC40 Features: ● HT resin fitting with excellent heat resistance. ● For use with Eslon HT pipes only. ● Stable use at high temperatures compared to conventional polyvinyl chloride pipes. ● For use with Eslon HT pipes only. Applications: ● For hot water supply, heating and cooling piping, and hot spring piping. ● For use with hot water supply, heating and cooling piping, and hot spring piping. Specifications: ● PVC pipe nominal diameter: 40 ● Dimensions (mm) D: 56 ● Dimensions (mm) D1: 56 ● Dimensions (mm) L: 73.5 ● Color: Reddish brown ● Material: Heat-resistant rigid polyvinyl chloride ● Maximum operating temperature (℃): 90 ● There are tolerances for each dimension ● Operating temperature range: 5 to 90℃ ● Maximum operating pressure: 0.2MPa ● JIS K6777 standard product Material/Finish: ● Heat-resistant rigid polyvinyl chloride Caution: ● Take special care when ventilating. ●When installing, be sure to refer to the reference materials (installation, performance, and safety precautions) in the Eslon Pipe Catalog "General Catalog." Failure to do so may result in serious accidents such as water leakage.
