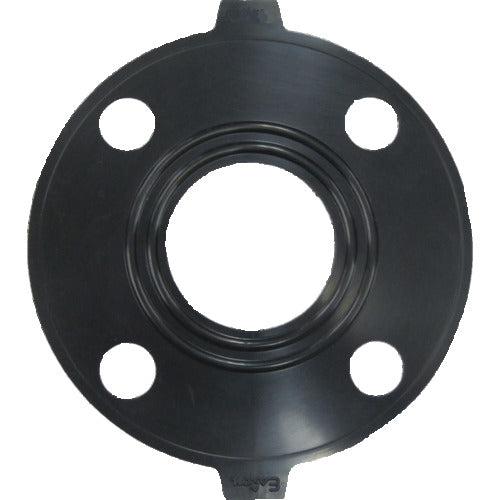

Eslon IIR-X packing JIS10K 20A PI20 1 piece

Catalog number: PI20 Features: ● Packing for sodium hypochlorite. ● Improved durability against sodium hypochlorite due to unique rubber compound design based on butyl rubber. ● Double round protruding ribs provide reliable water stopping performance. ● Provides high sealing performance with low tightening torque. Applications: ● Sodium hypochlorite piping. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Inner diameter (mm): 25 ●Outer diameter (mm): 98 ●Thickness (mm): 3 ●Operating pressure (K): 10 ●Bolt hole center diameter (mm): 75 ●Number of bolt holes (pcs): 4 ●Bolt hole diameter (mm): 15 ●Recommended tightening torque (N･m): 30 ●Number of holes (pcs): 4 ●Nominal diameter: 3/4B ●Size: 20A ●JIS10K specification ●Maximum allowable pressure: 1.0MPa (at 20℃) ●For sodium hypochlorite ●Maximum operating temperature: 100℃ ●For full seat Material/Finish: ●Butyl rubber type
