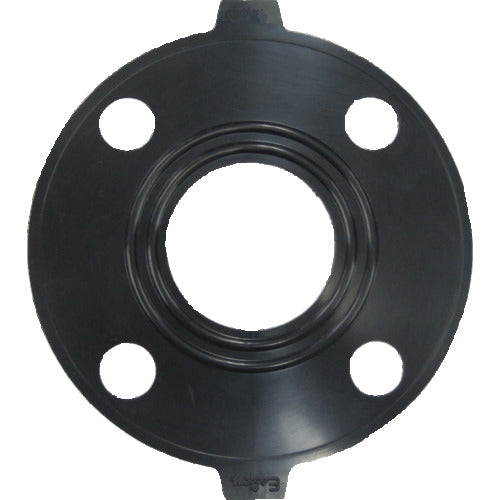

Eslon IIR-X packing JIS10K 65A PI65 1 piece

Catalog number: PI65 Features: ● Packing for sodium hypochlorite. ● Unique rubber compound design based on butyl rubber improves durability against sodium hypochlorite. ● Double round protruding ribs provide reliable water stopping performance. ● Provides high sealing performance with low tightening torque. Applications: ● Sodium hypochlorite piping. Specifications: ●Nominal diameter A: 65 ●Nominal diameter B: 2 1/2 ●Inner diameter (mm): 73 ●Outer diameter (mm): 173 ●Thickness (mm): 3 ●Operating pressure (K): 10 ●Bolt hole center diameter (mm): 140 ●Number of bolt holes (pcs): 4 ●Bolt hole diameter (mm): 19 ●Recommended tightening torque (N･m): 45 ●Number of holes (pcs): 4 ●Size: 65A ●Nominal diameter: 2 1/2B ●JIS10K specifications ●Maximum allowable pressure: 1.0MPa (at 20℃) ●For sodium hypochlorite ●Maximum operating temperature: 100℃ ●For full seat Material/Finish: ●Butyl rubber type
