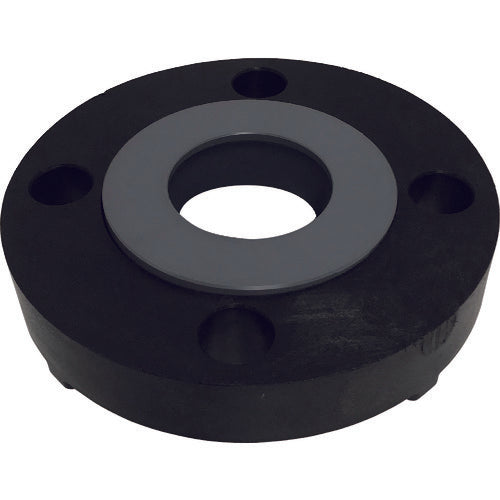

Eslon TS loose flange 10K 80A TLF80 1 piece

Catalog number: TLF80 Features: * The flange can be rotated, making on-site alignment easy and reducing installation time. * The anti-slip rib prevents the pipe from falling off when piping vertically. Applications: * For piping such as chemical piping in chemical plants, wastewater piping in semiconductor plants, seawater piping in fisheries plants, and wastewater treatment lines in food plants. Specifications: ●Nominal diameter A: 80 ●Nominal diameter B: 3 ●Inner diameter (mm): 89.6 ●Outer diameter (mm): 185 ●Thickness (mm): 27 ●Number of bolt holes (pcs): 8 ●Bolt hole diameter (mm): 19 ●Operating pressure (K): 10 ●Bolt hole center diameter (mm): 150 ●L (mm): 72 ●Maximum operating temperature: 60°C ●JIS10K specification (conforms to JIS B2220 standard) ●Applicable bolts and nuts (in the case of loose on one side (M16/neck length 75 mm 4 pieces)) ●Applicable bolts and nuts (in the case of loose on both sides (M16/neck length 80 mm 4 pieces)) ●Maximum allowable pressure: 1.0 MPa Material/Finish: ●Rigid polyvinyl chloride (PVC) ●Glass fiber reinforced polypropylene resin Set contents/Accessories: ●TS adapter
