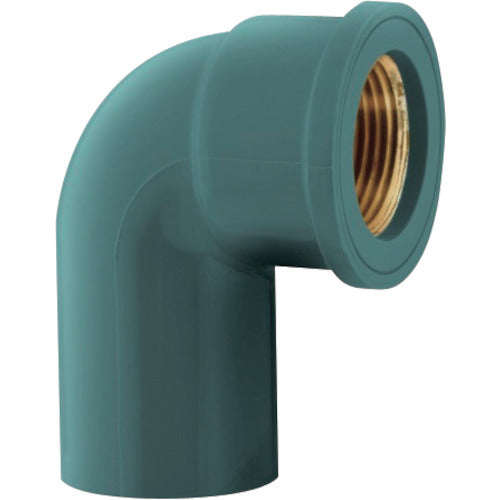

Eslon TS fitting, insert faucet elbow 16 Rp1/2 IWL16M 1 piece

Catalog number: IWL16M Features: ● Made from rigid polyvinyl chloride resin, it is harmless to the human body and does not color or smell the water. Applications: ● For VP pipes (rigid PVC pipes) only. Specifications: ● PVC pipe nominal diameter: 16 x 13 ● Dimensions (mm) D: 29 ● Dimensions (mm) H: 43 ● Maximum operating pressure (MPa): 1.0 ● Operating temperature range (℃): 5 to 40 ● Thread: Rp1/2 ● Operating temperature range: 5 to 40℃ ● Maximum operating pressure: 1.0MPa ● JIS K6743 standard Material/Finish: ● Rigid polyvinyl chloride (PVC)
