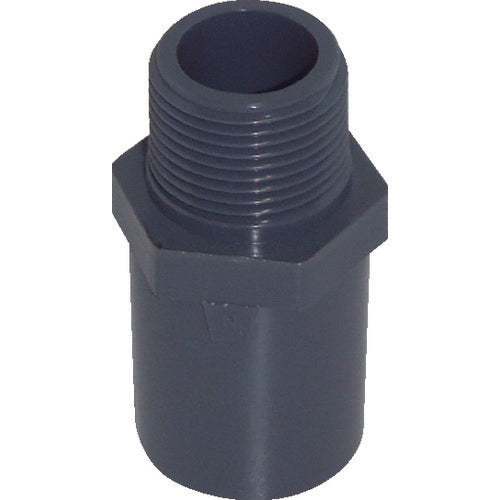

Eslon TS fitting valve socket 13 TSVS13N 1 piece

Catalog number: TSVS13N Features: ●The inner surface is very smooth, with low friction resistance, and slime and other substances do not easily adhere to it. ●Can be used for water supply piping. ●Adhesive joints allow for speedy installation. Applications: ●Fittings exclusively for water supply pipes in apartment complexes, detached houses, stores, facilities, etc. ●Fittings exclusively for VP pipes (rigid polyvinyl chloride pipes). Specifications: ●Nominal diameter of PVC pipe: 13 ●Dimensions (mm) D: 24.0 ●Dimensions (mm) L: 50 ●Thread: R1/2 ●R1/2 thread (tapered male thread) ●JIS B0203 compliant ●Color: Gray ●Material: Heat-resistant rigid polyvinyl chloride (PVC) ●Fittings exclusively for VP pipes ●Gray color ●Maximum operating pressure: 1.0 MPa (room temperature, water) ●Made in a factory certified to ISO 14001 ●JIS K6743 Material/Finish: ●Rigid polyvinyl chloride (PVC) Set contents/Accessories: ●The threaded part is made of resin. Caution: ●Please be careful of ventilation. ●When installing, be sure to refer to the reference materials (installation, performance, and safety precautions) in the Eslon Pipe Catalog "General Catalog." Failure to do so may result in serious accidents such as water leakage.
