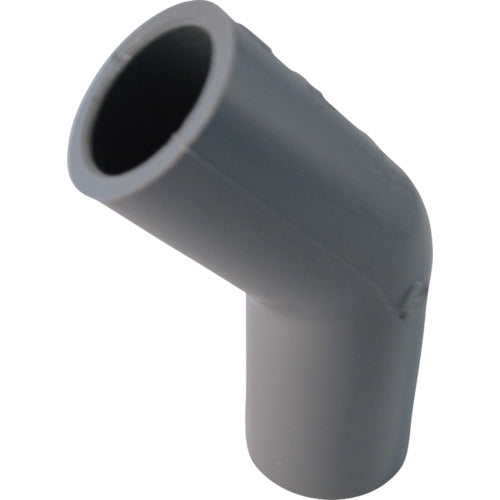

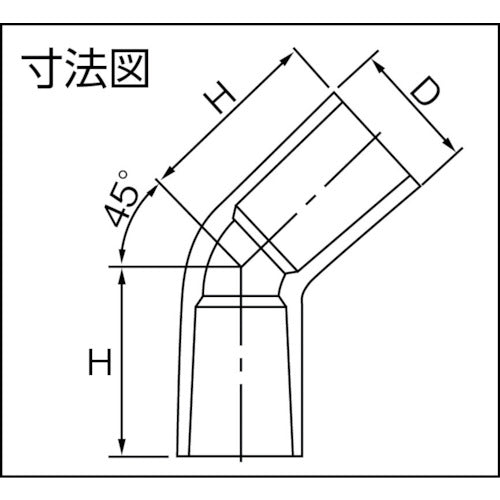

Catalog number: TS4L13 Features: ● Made from rigid polyvinyl chloride resin, it is harmless to the human body and does not color or smell the water. Applications: ● Fittings exclusively for VP pipes (rigid PVC pipes). Specifications: ● PVC pipe nominal diameter: 13 ● Dimensions (mm) D: 24 ● Dimensions (mm) H: 33 ● Maximum operating pressure (MPa): 1 ● Operating temperature range (℃): 5 to 40 ● Operating temperature range: 5 to 40℃ ● Maximum operating pressure: 1.0MPa ● JIS K6743 standard Material/Finish: ● Rigid polyvinyl chloride (PVC)
