Eslon VU Pipe 100 1.0m SJU1H1 1 piece

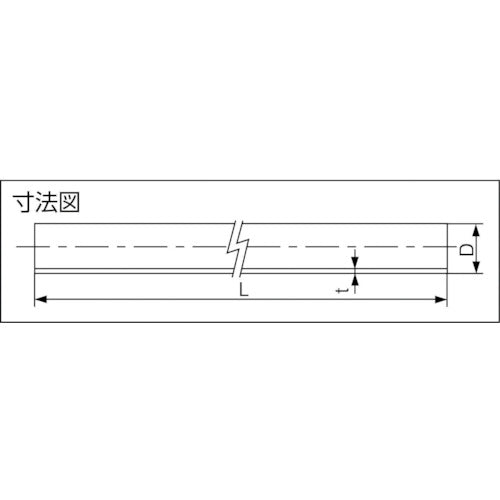

Catalog number: SJU1H1 Features: *The inner surface is extremely smooth, with little frictional resistance, and slime and other substances do not easily adhere to it. *It has the same performance as VP pipes, such as being able to drain efficiently for many years. *VU pipes are thinner than VP pipes, so please use them for general detached houses and simple drainage equipment. Applications: *Simple drainage equipment for general detached houses, etc. For outdoor drainage equipment. ●Please use VU fittings●For use with no pressure●1.0M standard product●Gray color Specifications:●Nominal diameter (mm): 100●L (mm): 1000●D (mm): 114●t (mm): 3.1●Length (mm): 1000●Outer diameter (mm): 114●Thickness (mm): 3.1●Material: Rigid polyvinyl chloride pipe (PVC)●Color: Gray●Maximum operating temperature (℃): 40●VU pipe nominal diameter (mm): 100●D (mm): 114●t (mm): 3.1●L (mm): 1000●This product has a thinner wall thickness than VP pipes●There are tolerances for each dimension. ●JIS K6741 standard●No-pressure drainage operating temperature range: 5 to 60℃ Material/Finish: ●Rigid polyvinyl chloride (PVC) Caution: ●When using adhesives, be careful to ventilate. ●Please use standard installation methods. ●Please be sure to read the installation, performance and safety precautions in the catalog reference materials. ●The pressure resistance of resin products decreases with increasing temperature.
