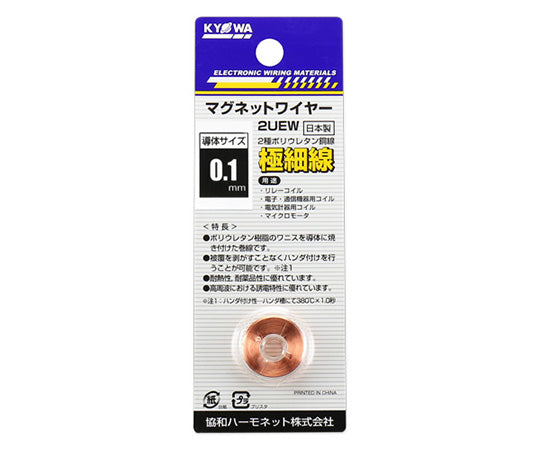

Enamelled wire (type 2 polyurethane copper wire) 0.1mm 7g 2UEW0.1MM7G 1 piece

This winding has polyurethane resin varnish baked onto the conductor. Soldering can be done without removing the coating. (Solderability: 380℃ x 1 second in a solder bath) It has excellent heat resistance and chemical resistance. Excellent dielectric properties at high frequencies. Relay coil Coils for electronic and communication devices Electrical meter coils Micromotor Conductor size 0.1mm Contents Approximately 7g (approximately 95m) Heat Resistant 120℃ (Type E)
