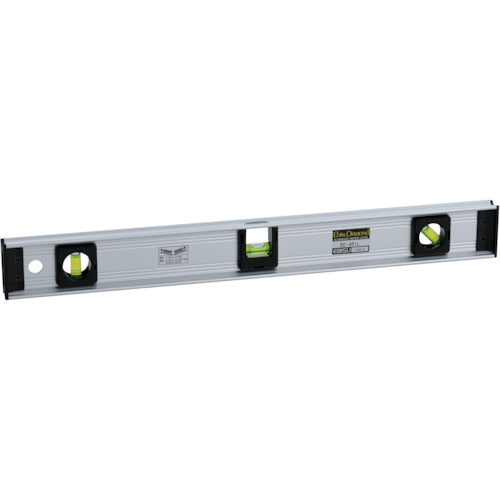

Ebisu Diamond Ideal Level 450mm ED-45IL 1 piece

Catalog number: ED-45IL Features: ●The measuring surface is arched, so it is resistant to twisting and deformation, and can measure flat surfaces as well as pipes (φ19 or more). ●The measuring reference surface has a U-groove, so pipes and the like can be measured. ●With a 45° angle, it is very convenient for measuring slopes. Applications: ●For measuring horizontal, vertical, and 45° angles. Specifications: ●Length (mm): 450 ●Height (mm): 51 ●Thickness (mm): 20 ●Magnet: None ●Body color: Silver ●Vial color: Green ●Accuracy: Within ±2.50mm/m = ±0.1432° ●Sensitivity: 0.50mm/m = 0.0286° Material/Finish: ●Body: Aluminum alloy extrusion, hardened ●Vial: Acrylic resin (PMMA)
