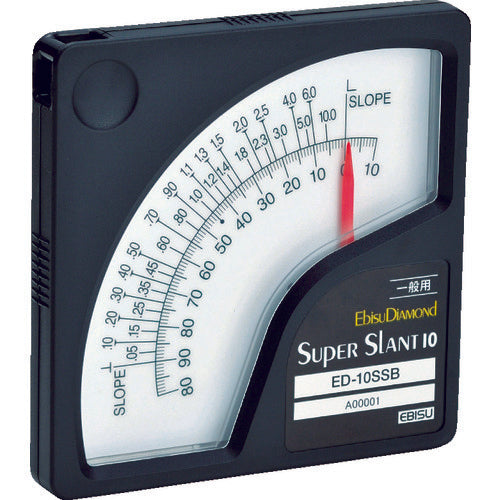

Ebisu Diamond Gradient Meter Super Slant 10 General Use ED-10SSB Black ED-10SSB 1 pc

Catalog number: ED-10SSB Features: ●Can measure angles and gradients from 0 to 90°. ●The measurement reference surface has a V-groove, allowing measurements of pipes, etc. ●Waterproof for daily use, so the moving part of the pointer will not rust in the rain, etc. ●Has a recess that makes it easy to hold with your fingertips. ●Has a strap holder so you can attach a strap or drop prevention cord. Applications: ●For measuring angles. Specifications: ●Length (mm): 100 ●Height (mm): 100 ●Thickness (mm): 12 ●Minimum reading value: 1° ●Minimum display: 1° ●Sensitivity: 3.00mm/m = 0.1719° ●Accuracy: Within ±17.5mm/m = ±1.0° ●Measurement range: 0° to 90° ●Type: General use ●Color: Black ●Dial-type angle measurement Material/Finish: ●Body: ABS resin ●Windshield case: Polystyrene resin
