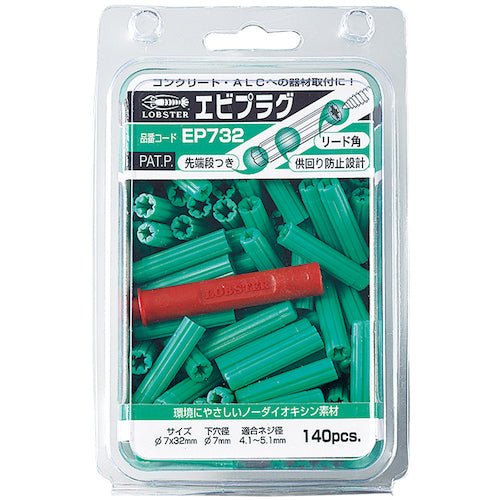

Ebi Ebi Plug 7-32 Green (140 pieces) EP732 1 PK

Catalogue number: EP732 Features: * Stepped tip makes it easy to insert into pilot holes. * Color-coded by nominal diameter for easy identification. * Lead angle at the center of the head guides the screw straight. * Unique anti-rotation design firmly secures the attached equipment. Applications: * For concrete and ALC. * Color-coded by nominal diameter for easy identification. * Lead angle at the center of the head guides the screw straight. * Unique anti-rotation design firmly secures the attached equipment. ●An environmentally friendly resin anchor plug made of dioxin-free material. Specifications: ●Nominal diameter (mm): 7 ●Length (mm): 32 ●Drilling depth (mm): 42-47 ●Maximum tensile load (kN): 5.4 ●Maximum tensile load (kN) concrete: 5.4 ●Maximum tensile load (kN) ALC: 1.1 ●Pilot hole diameter (mm): 7 ●Pilot hole diameter (mm) concrete: 7 ●Pilot hole diameter (mm) ALC: 6.5 ●Compatible screws (mm): 4.1-5.1 ●Outer diameter (mm): 7 ●Color: Green ●Total length (mm): 32 ●Color: Green ●Compatible screws: Wood screws, tapping screws ●Pack ●Quantity (pieces): 140 Material/Finish: ●Polypropylene (PP) Caution: ●The maximum tensile load is the value when the concrete strength is Fc23.5N/m［［Ｍ２］］. ●Avoid using on ceilings. ●The maximum pull-out load is greatly affected by the material and condition of the base material. Please use a sufficient safety factor taking into consideration the construction conditions. ●Screw length = plug length + thickness of object to be attached ●Before starting work, be sure to read the instruction manual carefully and fully understand it before using the product.
