EBI Stage Drill, Tin Coated, 15 Stages, Shaft Diameter 10mm, 6-42, LB642G, 1 Piece

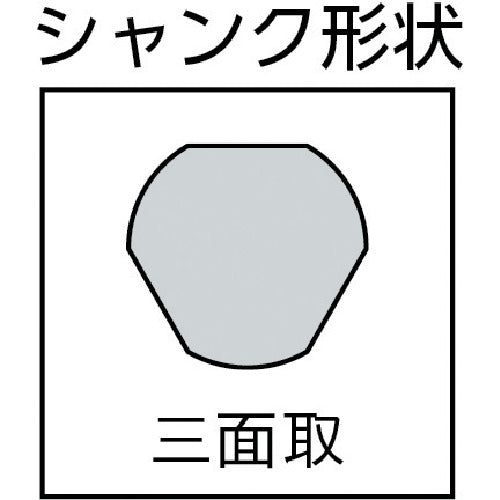

Catalog number: LB642G Features: ●One drill can be used for drilling, enlarging pilot holes, correcting and chamfering a variety of diameters. ●Cobalt high-speed steel is used for excellent sharpness and life. ●The blade is specially processed and uniquely polished, so there is little resistance during operation and it is excellent in sharpness and chip discharge. ●The drill has little lateral slippage, has excellent bite into the workpiece, and does not require a center punch. ●There is little back burr, reducing the amount of deburring work required after drilling. Applications: ●Workpiece: Steel plate, wood, plastic, stainless steel, etc. (Do not use on heat-treated metal plates.) Specifications: ●Step width (mm): 2.5 ●Number of steps (steps): 15 ●Shank shape: straight shaft (three-sided chamfer) ●Shank diameter (mm): 10 ●Drilling dimensions (φ): 6, 9, 12, 15, 18, 21, 24, 27, 30, 32, 34, 36, 38, 40, 42 ●Total length (mm): 85.5 ●Surface treatment: Titanium coating Material/Finish: ●Cobalt high speed steel Set contents/Accessories: ●None
